Lunte specializes in the design and manufacture of temperature sensors and nuclear measurement instruments, involved in industries such as industrial, nuclear power, and is recognized as a national-level "little giant" enterprise and a "hidden champion" enterprise in Zhejiang Province.

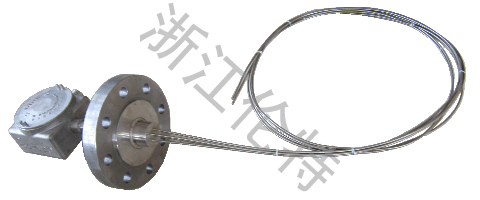

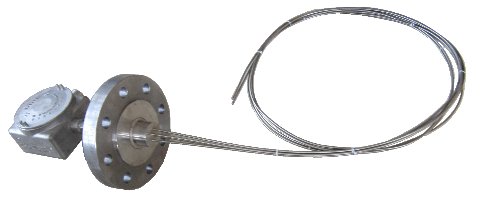

The multipoint thermocouple is sealed with high-pressure sealing filler and metal compression fittings. A protective cover is installed beneath the flange surface to prevent the accumulation of dust at the flange root of the mounting tube from causing hydrogen embrittlement and corrosion of the thermocouple.
Product Overview
Shell gasifiers
? Thermocouples are flexible and bendable.
? With a single detachable structure.
? There are two layers of sealing components and protective covers at the flange
? Sealing chamber leakage detection function is optional.
| Graduation | K-type, S-type |
|---|---|
| Sheath diameter | Φ4.5 、Φ5 、Φ6 、Φ8 (inner multipoint) |
| Sheath material | 316 、316L、lnconel600 、lncone l 625 |
| Pressure grade | 600LB |
| Non-core-pulling | Welded seals |
| Core-pullable | Packing seal |
| Service life | More than 12 months |
